Holosun Red Dot Sights

Documented failure modes

• Holosun HS407C-X2: loss of zero . Owner reported three loss-of-zero incidents late in the optic's service life (shots landing low, then high, then left, each corrected with a few clicks) despite witness marks confirming the mount screws had stayed tight, meaning the shift was not explained by a loose mount. He said he would likely retire the optic from carry duty to a training-only role as a result.
• Holosun HS407K-X2 (HS407K-X2): insufficient windage/elevation adjustment range to zero on some host guns . Primer Peak (s1) could not achieve zero on a Taurus 856 revolver due to limited internal adjustment range; the optic zeroed normally on the slim-slide pistols it was designed for. This is a fit/adjustment-range limitation, not an electronics or housing failure. The same reviewer also noted inconsistent click tactility on the windage/elevation adjusters. No dot/electronics/housing failure was reported in any cited first-hand source.
• Holosun 507C X2 (HS507C X2): dot disappeared / could not be re-centered in the 32 MOA reticle (unit died) . OP's first 507C X2 on a Walther PDP 4in died inside the first ~100 rounds of 115gr FMJ; warranty replacement reportedly worked fine. Appears to be a QC/early-failure unit, not endurance-related.
• Holosun 507C X2 (HS507C X2): intermittent dot flicker (momentary on/off) . First-hand forum report of a 507C that randomly/momentarily flickers; another user reported a 507C X2 that lost some brightness over time. Anecdotal, single units.
• Holosun 507C X2 (HS507C X2): battery tray screw / mounting screws backing out . First-hand commenter on Gun University review reported optic came loose in the field and lost the battery-tray screw. Recurring user complaint; mitigated by thread locker and periodic checks.
• Holosun HS507C-X2: unit died mid-range-session, battery swap only temporary fix; failure followed unit to a different battery but not to a different optic/gun (pointing to internal fault) . Important caveat: the unit that failed was the author's original 507C V2, not the X2 this record is about. It died twice during a live range session. Holosun issued an RMA same day, received the unit the following week, and offered a free upgrade to the X2 as the replacement, which the author took and has not reported any failures with. So this is first-hand evidence of a V2 failure and of Holosun's warranty responsiveness, not of an X2 failure.
• Holosun HS507C-X2: outer-circle reticle fading/flickering, eventually failing entirely (only two brightest settings still showed the outer circle) . Unverified: could not fetch the primary forum thread (403); reported only from a search-engine snippet. Treat as a soft, unconfirmed data point, not a hard citation.
• Holosun EPS Carry (EPS-CARRY-RD-MRS): battery-tray retention screw backing out during/after battery changes . Acknowledged by Holosun in the manual; mitigated with thread locker. Affects EPS/EPS Carry line; not a dot/electronics failure. No functional or optical failures reported in any first-hand test.
• Holosun HM3X (3x flip-to-side magnifier): flip-to-side mount flips out of position unintentionally (detent/pivot tension too light) . First-hand (Primer Peak): in the opposite-side orientation the pivot screw was bottomed out to the end of its travel yet still 'does not have nearly enough resistance,' and the magnifier flipped on its own 'when shaking the gun hard.' Corroborated qualitatively by Pew Pew, which lists 'factory mount isn't the strongest' as a con. Mechanical/tension issue, not an optical or electronic failure; owner mitigation is thread locker. NOTE: GunsAmerica (s4) reports the titanium HM3XT variant adds a locking tab on the lever, so this base-HM3X looseness may differ on that SKU.
• Holosun HM3X (3x flip-to-side magnifier): internal-lens cosmetic QC defect (black streaks and dots on the internal lenses) . First-hand (Primer Peak): his specific HM3X unit had black streaks and dots visible on the internal lenses, which he found disheartening had cleared Holosun QC. Unit-specific cosmetic/QC escape, not a functional optical failure; he still identified and engaged targets to about 400 yards. Also during assembly the lower 1/3 co-witness spacer screws started stripping slightly (fixed with Loctite). No DOA or electronics failure is possible on a passive magnifier; no broad infant-mortality pattern is documented.
• Holosun HS403B (Paralow): fragile service hardware: the bundled Torx wrench snapped off in the rifle mounting screw while removing the optic from its mount (a separate event), and the CR2032 side tray is finicky to seat . First-hand: Lynx Defense (Michael Savage) found the CR2032 side tray 'finicky' to seat; separately, the bundled Torx wrench snapped off in the rifle mounting screw while he was removing the optic from its mount, which he attributed to pot-metal tool quality. These are two distinct maintenance observations, This is a maintenance/QC gripe, not a dot or electronics failure. No optical or electronic failure was documented in either first-hand handling review.
• Holosun SCS-320-GR (DPP footprint, for Sig P320): mounting screws shearing off / backing out under recoil . Corroborated across two separate forums (s2 on a VP9-mounted SCS, s3 on a P320-mounted SCS-320), described by s2 commenters as 'a well known issue with the SCS, particularly with the V1.' Attributed by repliers to over-torquing rather than a design defect (spec ~12-15 in-lbs); fixed with aftermarket screws (Battlewerx, C&H Precision) and threadlocker. The P320-specific report (s3) is lower confidence since the source page could not be directly read, only summarized.
• Holosun SCS-320-GR (DPP footprint, for Sig P320): battery-longevity / auto-brightness issues requiring warranty RMA . Some Glock Talk posters reported battery/auto-brightness concerns severe enough to RMA units, alongside other owners reporting zero issues over 500-1,000+ rounds. Reads as isolated QC variance rather than a systemic flaw.

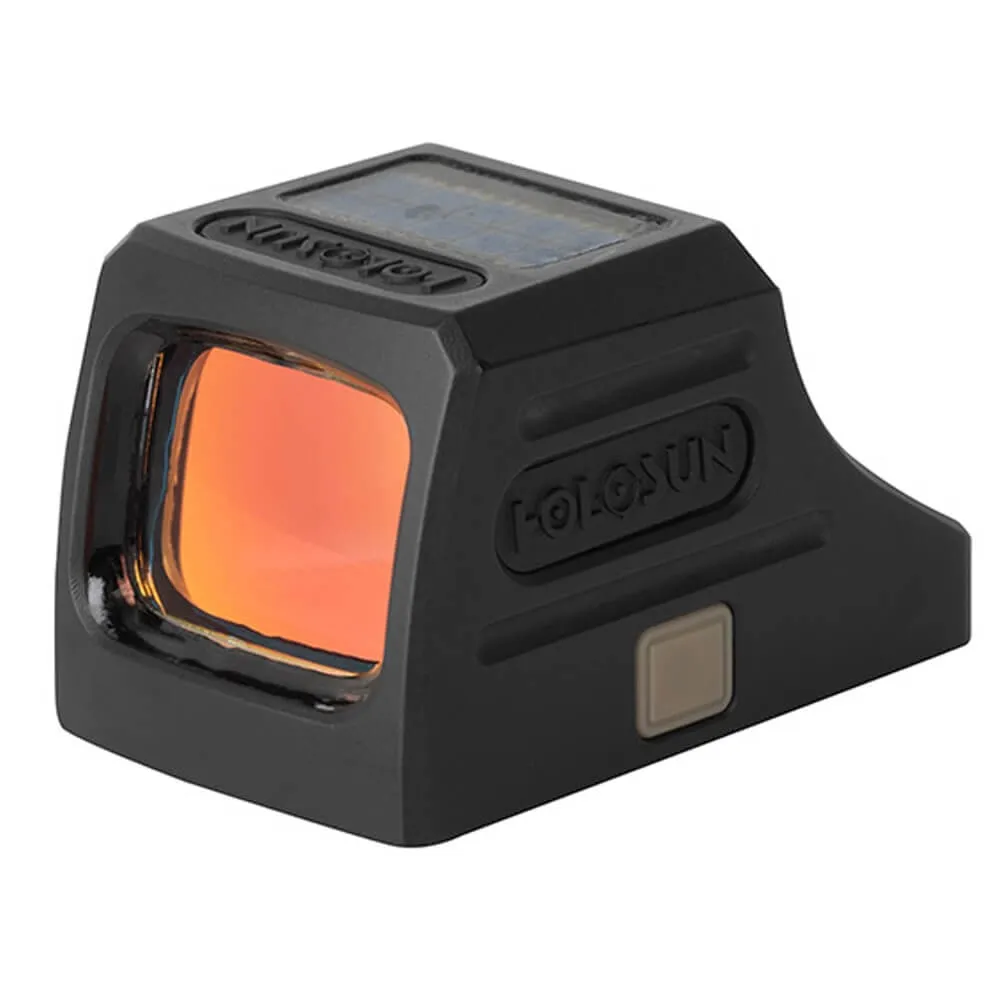

• Holosun SCS Carry (SCS-CARRY-GR): factory mounting screw shear/head snap . Recurring complaint across the reliability thread is the factory mounting screws, not the optic's electronics. One poster had a screw shear/head fly off during an early range session; another had a screw head snap off within roughly 30 rounds, requiring the slide be sent back for repair due to a stripped hole. Snippet-sourced, unconfirmed dates/usernames.
• Holosun SCS Carry (SCS-CARRY-GR): mounting screw shear (general) . The Armory Life forum thread confirms screw-shearing is 'a well known issue with the SCS,' and one commenter specifically flagged early V1 PDP-mount units (the report itself was on a VP9); it's unconfirmed whether that specifically applies to the Carry/GR mount covered by this record. Posters disagreed on thread-locker's role: some argued blue Loctite effectively increases achieved torque beyond spec, but another countered that thread-locker affects removal difficulty, not torque. Over-torquing and incorrect screw length were the causes with the broadest agreement.
